Hybrid Photovoltaic and Wind power system

Hybrid Photovoltaic and Wind power system
Abstract
A hybrid photovoltaic (PV) and wind power system combines two complementary renewable energy sources to provide more reliable and stable power generation. PV systems generate maximum output during sunny conditions, while wind turbines can produce energy during cloudy or nighttime periods if wind speeds are sufficient. Integrating both sources mitigates the intermittency inherent in each, improves the utilization of renewable resources, and reduces dependence on fossil fuels. This paper explores the design, control, and performance of a hybrid PV–wind system, including the power conditioning stages, energy storage, and control strategies to optimize power flow and ensure grid compatibility or standalone operation.

Existing System
Most standalone PV or wind systems suffer from intermittent power supply and variable output due to fluctuating irradiance and wind speed. Existing hybrid systems often use simple parallel connections of PV arrays and wind turbines feeding a common DC bus or battery bank, with limited intelligence in power-sharing control. Many current designs:

Lack coordinated Maximum Power Point Tracking (MPPT) for each source, leading to suboptimal energy harvest.

Depend on basic charge controllers and passive balancing rather than active power flow management.

Provide limited or no integration with grid standards, reactive power control, or advanced energy management.

Have oversized battery banks to compensate for variability, increasing cost and maintenance.

These limitations reduce overall system efficiency, reliability, and economic viability.

Proposed System

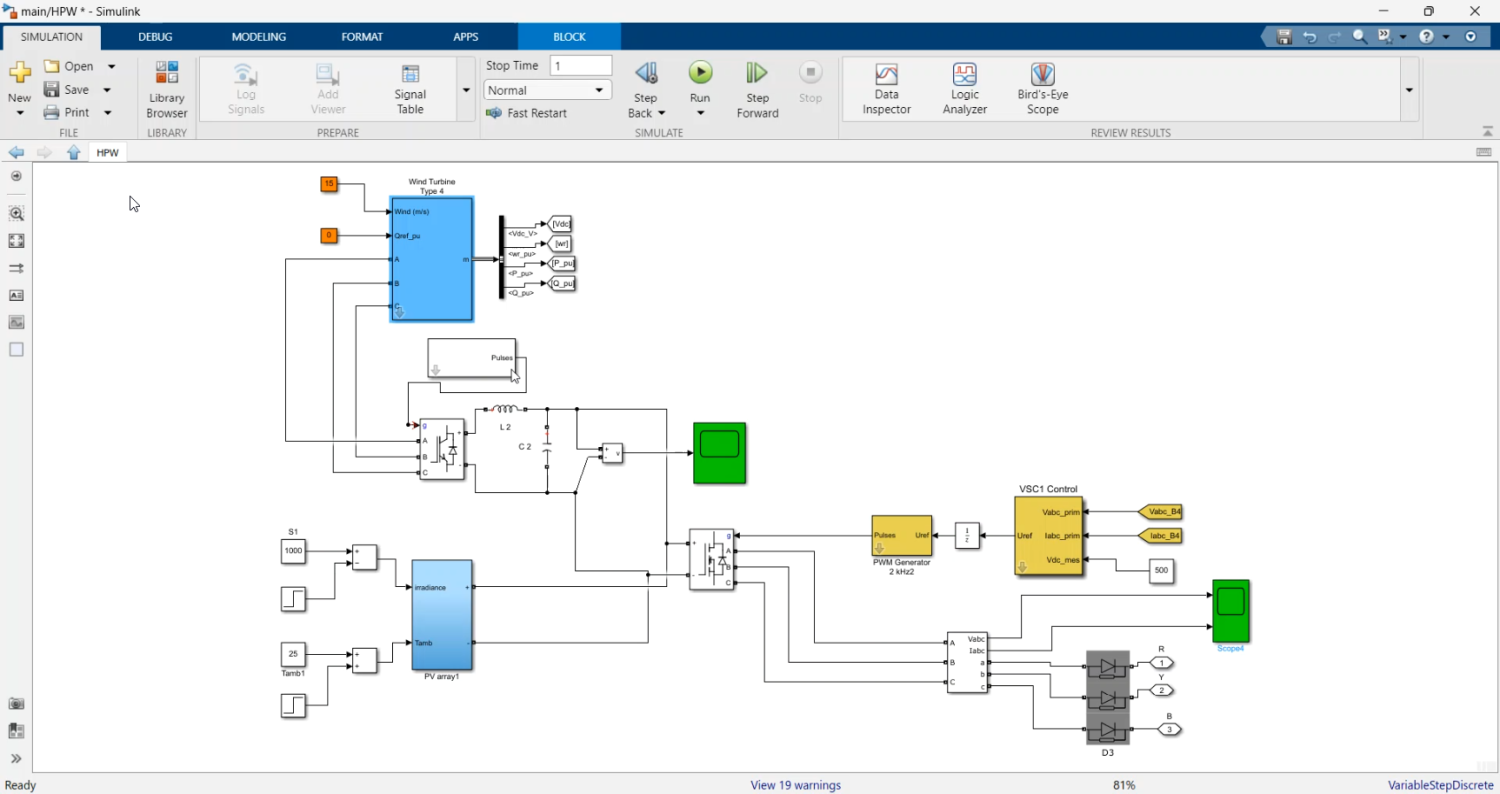

The proposed hybrid PV and wind power system features individual MPPT-controlled converters for both PV and wind inputs connected to a common DC bus. Key features include:

Dual MPPT Controllers: One optimized for the PV array (using Incremental Conductance or PSO-based MPPT) and another optimized for the wind turbine (using Tip-Speed Ratio or Power Signal Feedback methods).

Intelligent Power Flow Management: A central energy management controller allocates power between the load, grid, and battery storage based on real-time demand, state of charge, and generation forecasts.

Energy Storage Integration: Batteries or supercapacitors smooth out short-term fluctuations and provide backup during low-generation periods.

Grid/Off-Grid Flexibility: Incorporates an inverter stage with low harmonic distortion, synchronization, and compliance with grid codes for hybrid operation.

Scalable Modular Design: Allows for easy expansion of PV or wind capacity independently.


This hybrid approach increases total renewable penetration, reduces the need for oversized storage, and ensures a more stable power supply compared with single-source systems. It also enhances the economic viability of rural electrification, microgrids, and distributed energy applications.
