IEEE 14 Bus System Simulink Model

IEEE 14 Bus System Simulink Model
Abstract
The IEEE 14-Bus System is a widely used benchmark network for power system research and education. It represents a simplified transmission and distribution network consisting of 14 buses, 5 generators, 11 loads, 20 transmission lines, and 3 transformers with tap-changing capabilities. Modeling this test system in MATLAB/Simulink allows researchers and engineers to simulate load flow, transient stability, fault analysis, renewable integration, and optimal power flow scenarios under realistic operating conditions. The Simulink model provides a graphical, component-based environment where generators, transmission lines, transformers, and loads can be interconnected, enabling both steady-state and dynamic performance evaluation.

Existing System
Traditionally, studies on the IEEE 14-Bus System have been performed using text-based load flow tools such as MATPOWER, PSAT, or proprietary power flow software. While these tools offer fast calculations, they are limited in real-time simulation, graphical interaction, and integration of advanced control systems. Existing implementations:

Are largely static, focusing only on power flow or optimal dispatch rather than time-domain simulation.

Lack intuitive visualization of system dynamics such as generator responses, line flows, or transient events.

Offer limited scope for testing renewable energy integration, FACTS devices, or custom controllers in a co-simulation environment.

Require separate software for control system testing, making the process cumbersome.

As a result, conventional approaches are less effective for modern research that demands dynamic, interactive models.

Proposed System

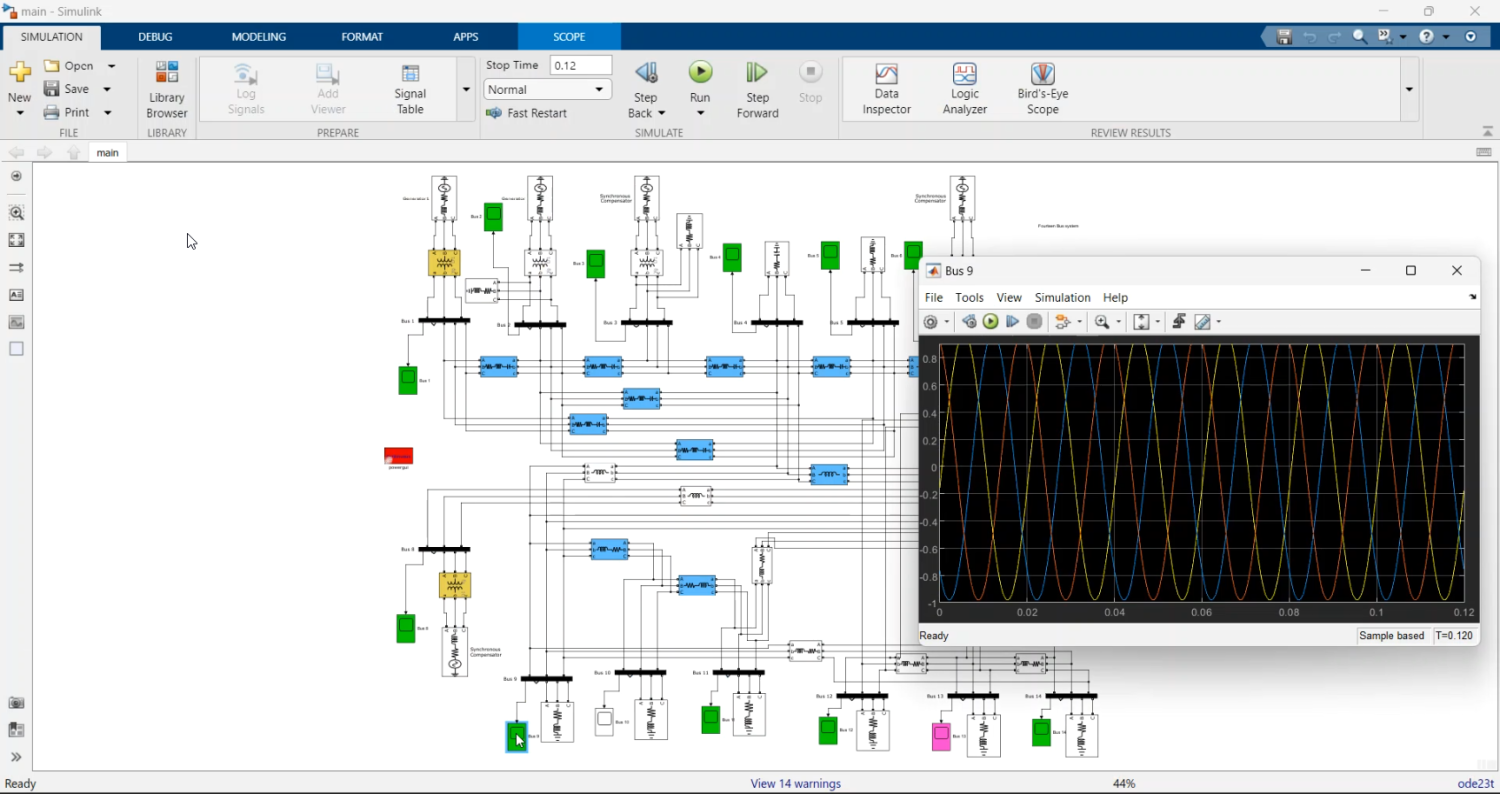

The proposed system develops a full graphical Simulink model of the IEEE 14-Bus System using MATLAB’s Simscape Electrical Specialized Power Systems library. This model includes:

Detailed Component Representation: Each bus connected to generators, loads, transmission lines, and transformers based on IEEE 14-bus test case data.

Integrated Load Flow and Dynamic Simulation: Enables both steady-state and time-domain analysis within one environment.

Customizable Controllers: Ability to integrate renewable sources (PV, wind), FACTS devices (STATCOM, UPFC), and custom control algorithms for testing.

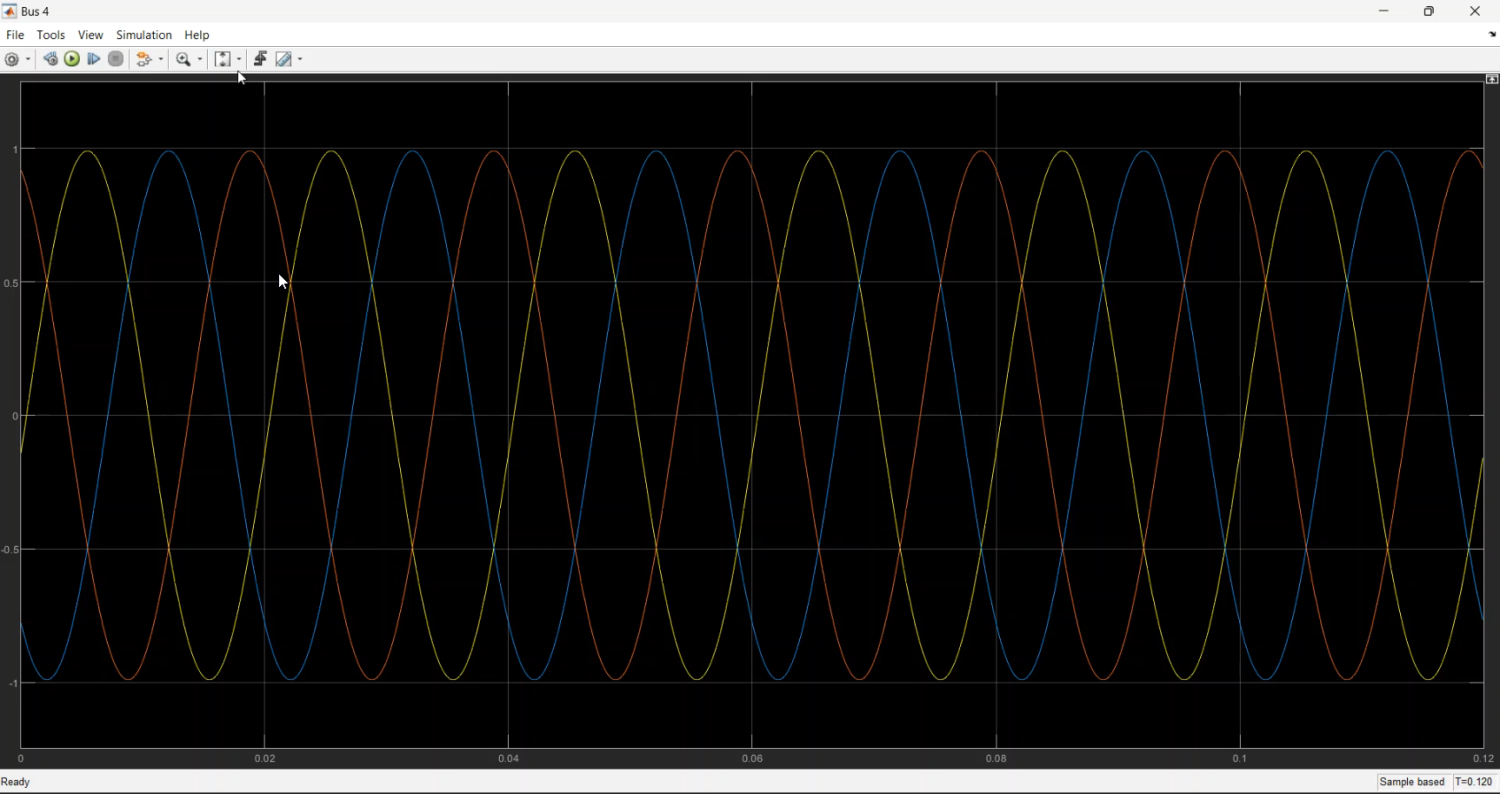

Real-Time Monitoring: Measurement blocks display bus voltages, currents, and power flow during simulation.

Flexible Environment: Facilitates fault studies, voltage stability analysis, and optimal power flow studies under various conditions.


This Simulink-based approach overcomes the limitations of traditional text-based tools by combining power system modeling with control system design and real-time visualization, providing a powerful platform for both academic research and industrial applications.
